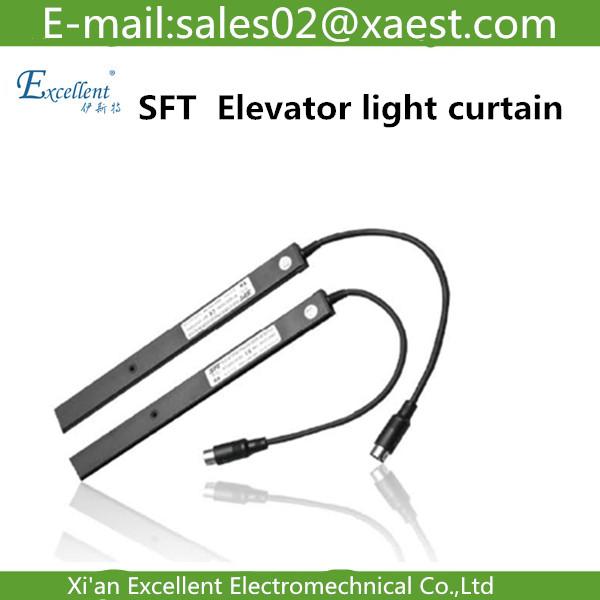

Safety Elevator light curtain Integrative 3D Light curtain TIDE-3D

l High sensitivity with “2D”and “3D”offering maximum passenger protection

l Compared with ordinary light curtain,the combined system can be conveniently installed and debugged,and do not need extra components and complicated debugging procedures.

1)154 criss-cross plane beams.

2)Built it “3D”with 16 beams.(Automatically shield the 3D beams when the door closing in place).

l Functional settings which are more adaptive to field installation.

1)Mode select for validity of 3D function:whole journey or shield 3D beams affer 10 seconds.

2)To adjust 3D sensitivity according changing site environment:High sensitivity,Low sensitivity and close 3Dfunction

l Outstanding performance of resisting electromagnetic interference.

TECHNICAL SPRCIFICATIONS
Model	TIDE-3D
Number of diodes	2D:32 3D:16
Distance between diodes	59mm
Maximum beams (distance≥400mm)	154beams
Minimum beams (distance＜400mm)	96beams
Highest beam	1840mm
Lowest beam	23mm
Size	16mm(thickness)x30mm(width)x2000(height)
Detecting distance	0-4000mm
Vertical displacement at 0mm	±20mm
Horizontal displacement at 0mm	±3mm
Angular displacement at 0mm	±10degrees
Cable reliability	20 million door movements
Light immunity	≤100000LUX
EMC compliance	Emissions to EN12015,Immunity to EN12016
Operating temperature range	-20℃~+65℃
IP rating	IP54
Vibration test	Random vibration 20 to 500Hz 0.002g2/Hz 4hrs per axis Sinusoidal 30Hz 3.6 rms 30mins per axis
Response Time (NON or PNP)	80ms
Response time (Relay)	110ms
Timeout Function	15Sec 5 non-adjacent diodes

POWER SUPPLY UNIT(see detailed information in Page 31)
Model P220	Input voltage 220V AC±20% 4VA
Model P110	Input voltage 110V AC±20% 4VA
Model P110/220	Input voltage 110/220V AC(Switchable) 4VA
Model P110/220-W	Input voltage 85~265V AC(Switchable) 4VA
Model P12/24	Input voltage 10~35V DC 4VA
Model P24	Input voltage 19~36V DC 4VA;18~30V AC 4VA
System Hint (Buzzers are optional)Mode 1:Give buzzer sound once interrupted. Mode 2:Give buzzer sound 15 second after continuously interrupted

PNP/NPN (Without power supply unit)(see detailed information in Page 32)
Input voltage	15~35V DC 3VA
Output modes	PNP-N/C:High level effective,Normal output high,Interrupt output open(Invalid level)
Output modes	PNP-N/O:High level effective,Normal output open(Invalid ),Interrupt output high
Output modes	NPN-N/C:Low level effective,Nomal output low,Interrupt output open (Invalid level)
Output modes	NPN-N/O:Low Level effective ,Normal output open (Invalid level),Interrupt output low
Output currents	Maximum 500mA(Can drive small load such as relay)
